10G EML DWDM Coaxial TOSA

BACK

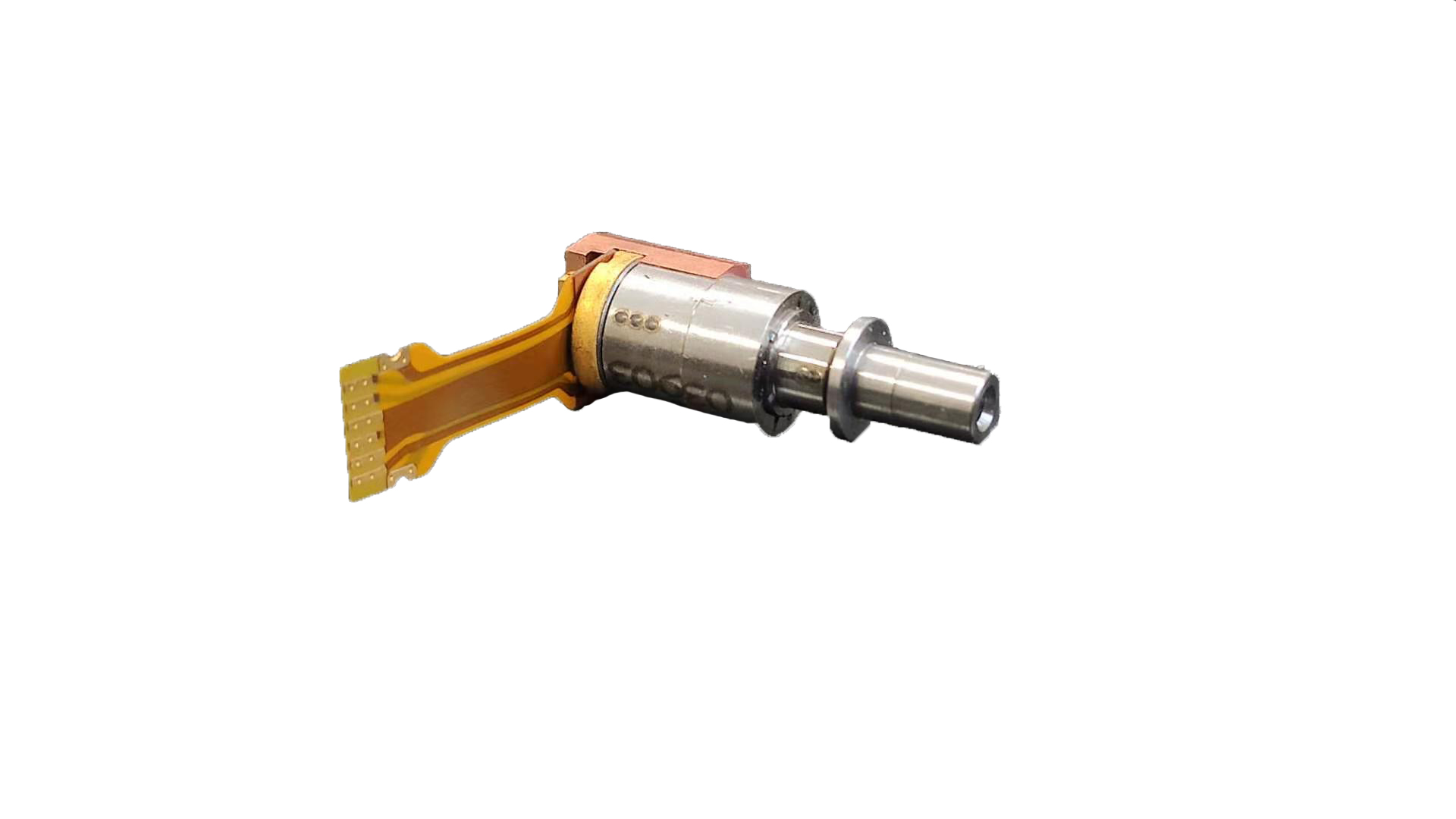

The 10Gb/s transmitter optical subassembly (TOSA) integrates a high-speed electlro-absorption modulated laser (EML), a micro-TEC and monitor PD in a small form-factor coaxial package.

  1. Data rate from 9.95 Gbps to 11.3Gbps
  2. 50GHz ITU Grid, C Band
  3. DWDM-rated EML TOSA
  4. TOSA package with industrial standard FPC and LC receptacle
  5. Transmission distance up to 40km, 80km
  6. 50 ohm input impedance match
  7. Integrated optical isolator
  8. Operating case temperature range: commerce -5°C~75°C, industry-40℃~85℃
  9. RoHS compliant
