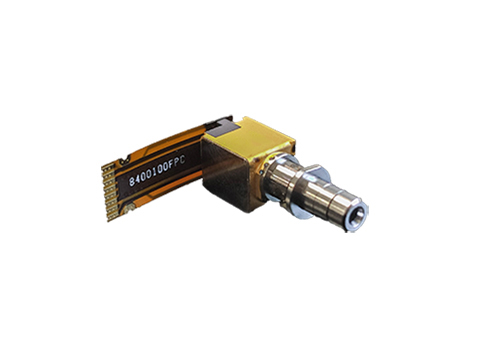

25G DML Cooled LWDM TOSA

BACK
The LWDM Series transmitted at 10km with 25 Gb/s transmitter optical subassembly (TOSA) integrates DML laser, a monitor PIN photodiode and a micro-TEC in a small form-factor metallized 10 pin ceramic BOX  package.
It designed for use in covered 25Gb /stransceivers and other high-speed telecommunication and data applications. These elements are packaged with an LC receptacle.
The electrical interface is through flex connects.

  1. Multi channel emission(LanWDM)
  2. Date rates up to 25Gbps
  3. High output power
  4. Narrow Linewidth(3MHz)
  5. Long history of proven field reliability
  6. Built-in Isolator,TEC,Rth and PD
  7. Designed for Telcordia-GR468
  8. Operating temperature range:-40℃ to +85℃
  9. Rohs compliant
